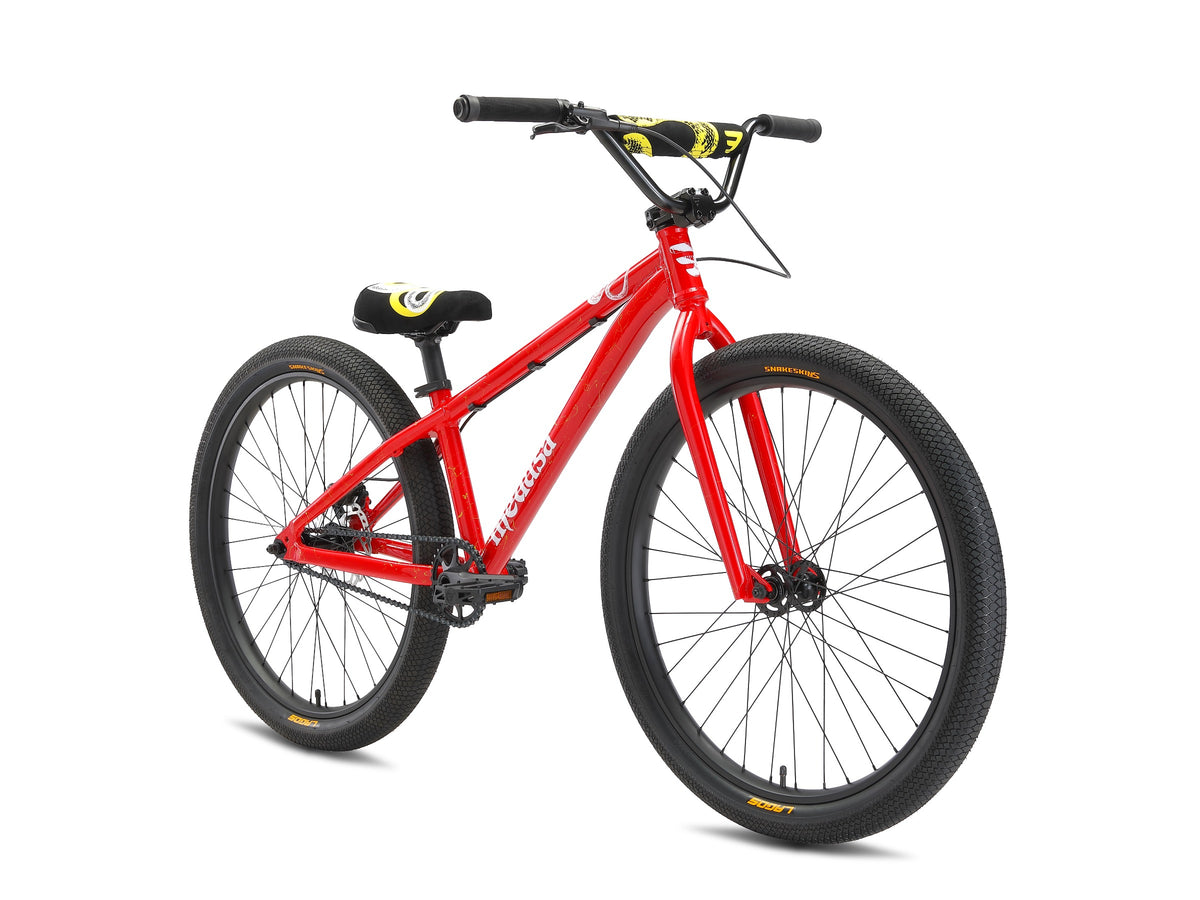

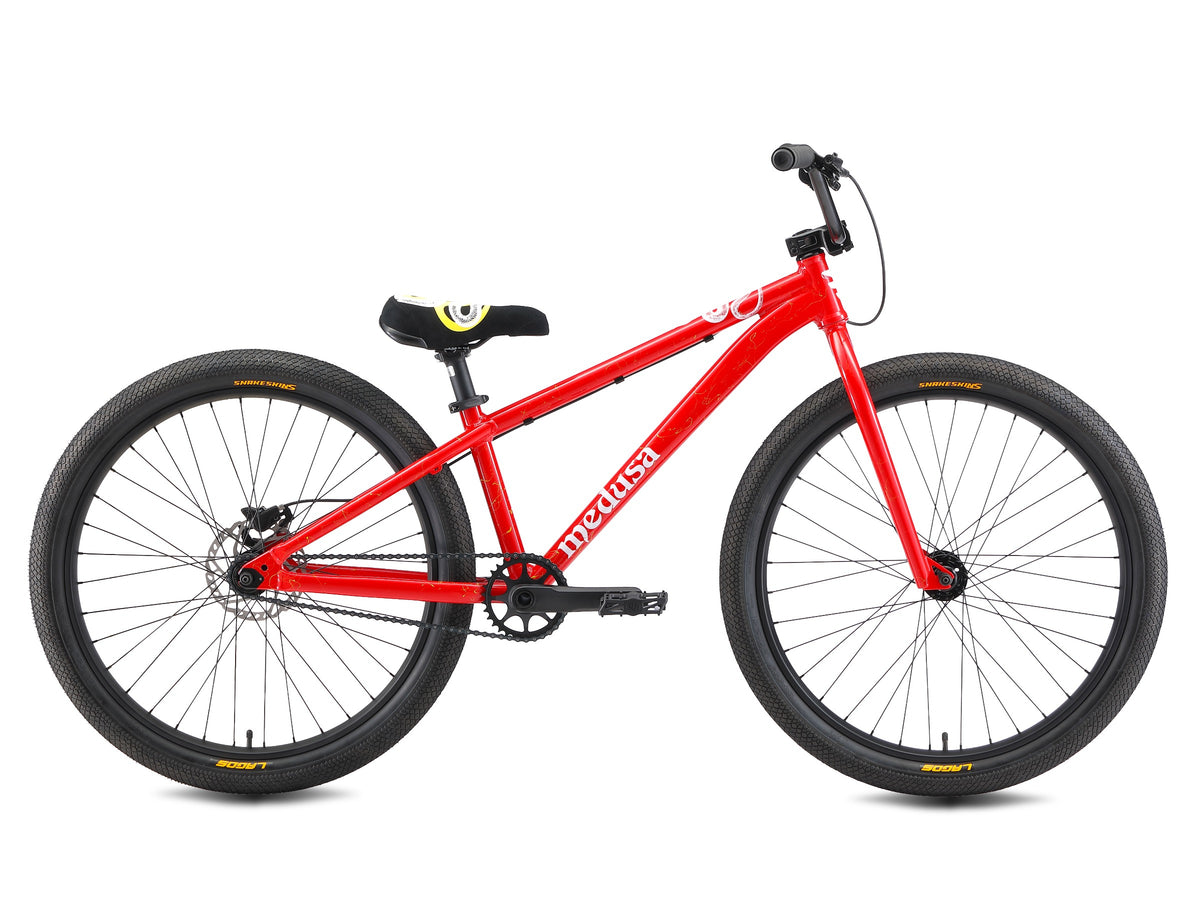

Medusa V2 Red

Medusa V2 Red.

Specifications

• Top tube length: 568mm

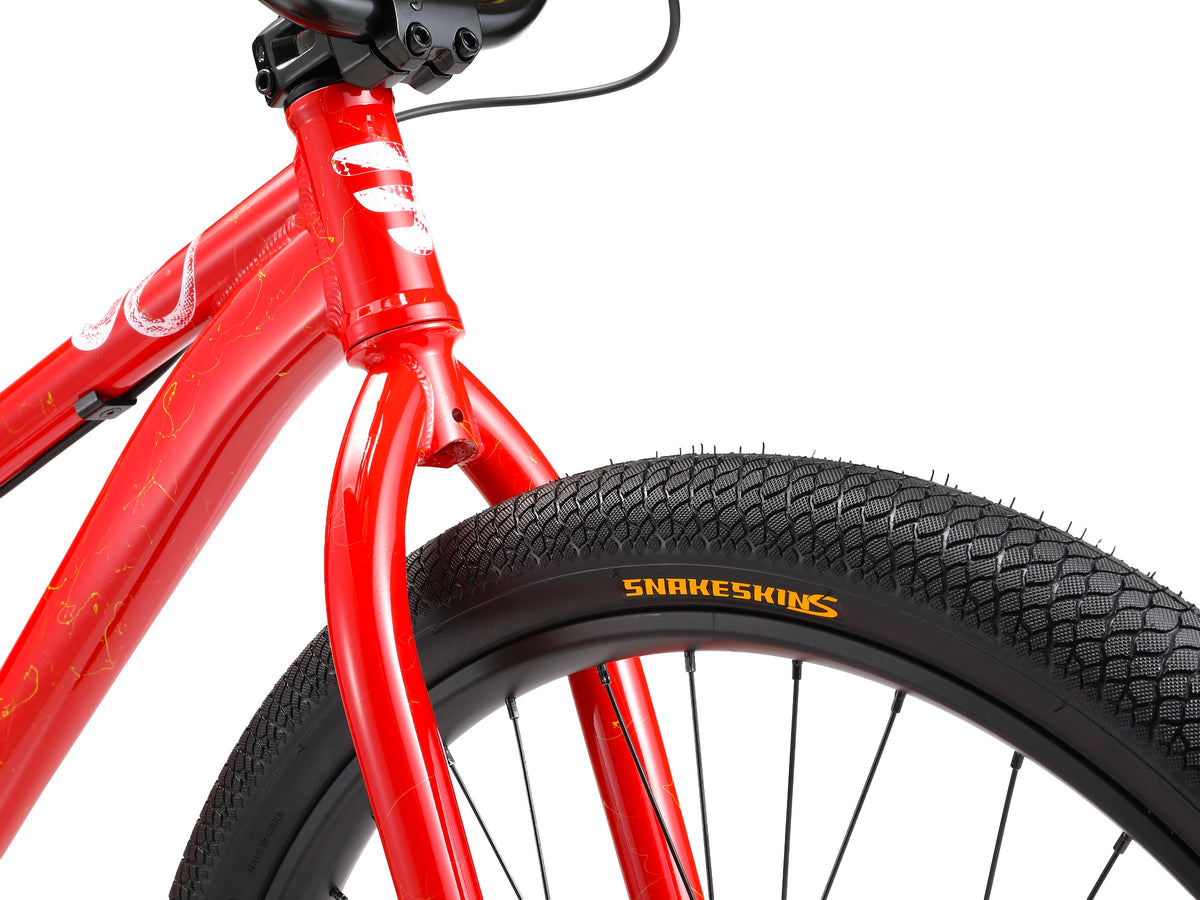

• Front tyre: Lagos Snakeskin "S" Super Soft Compound 26" x 2.5"
• Rear tyre: Lagos Snakeskin "S" Super Soft Compound 26" x 2.5"
• Head tube length: 105mm

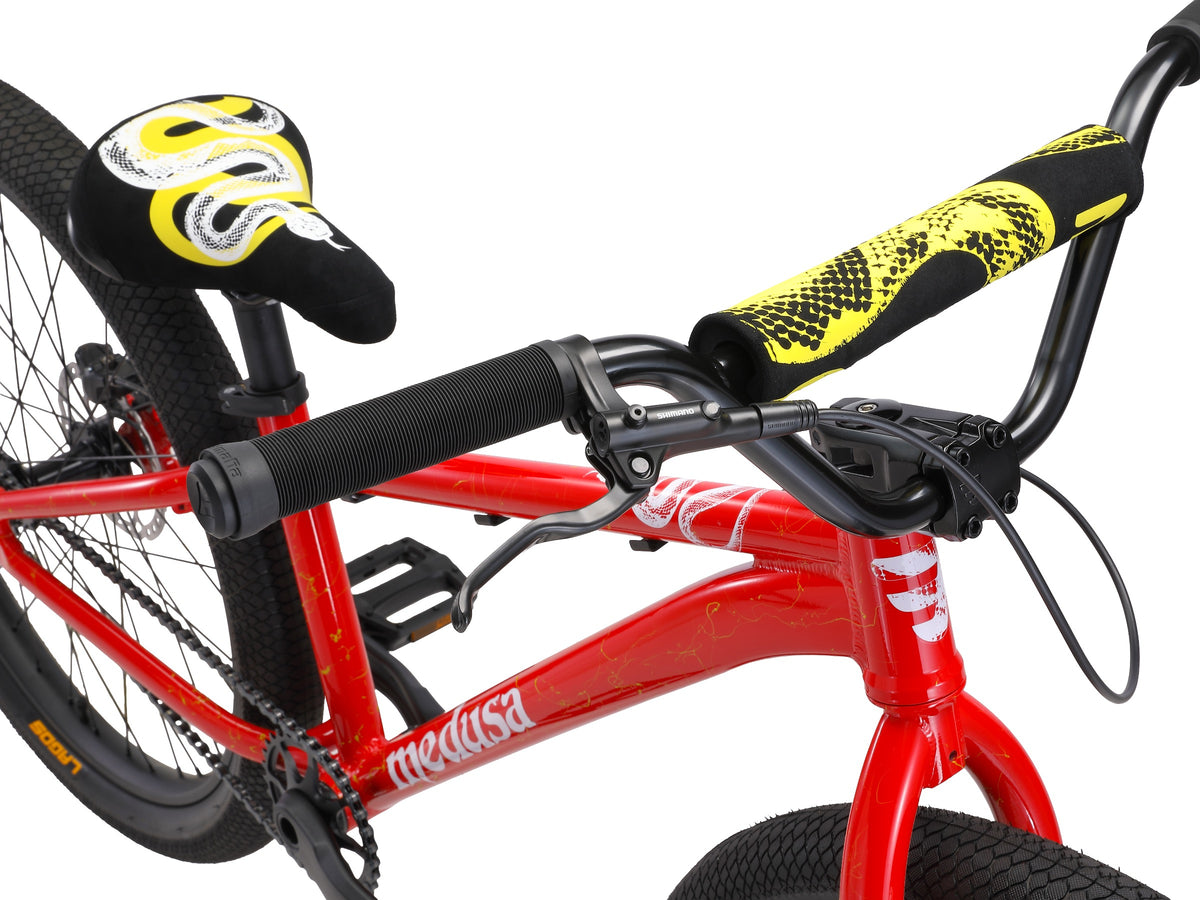

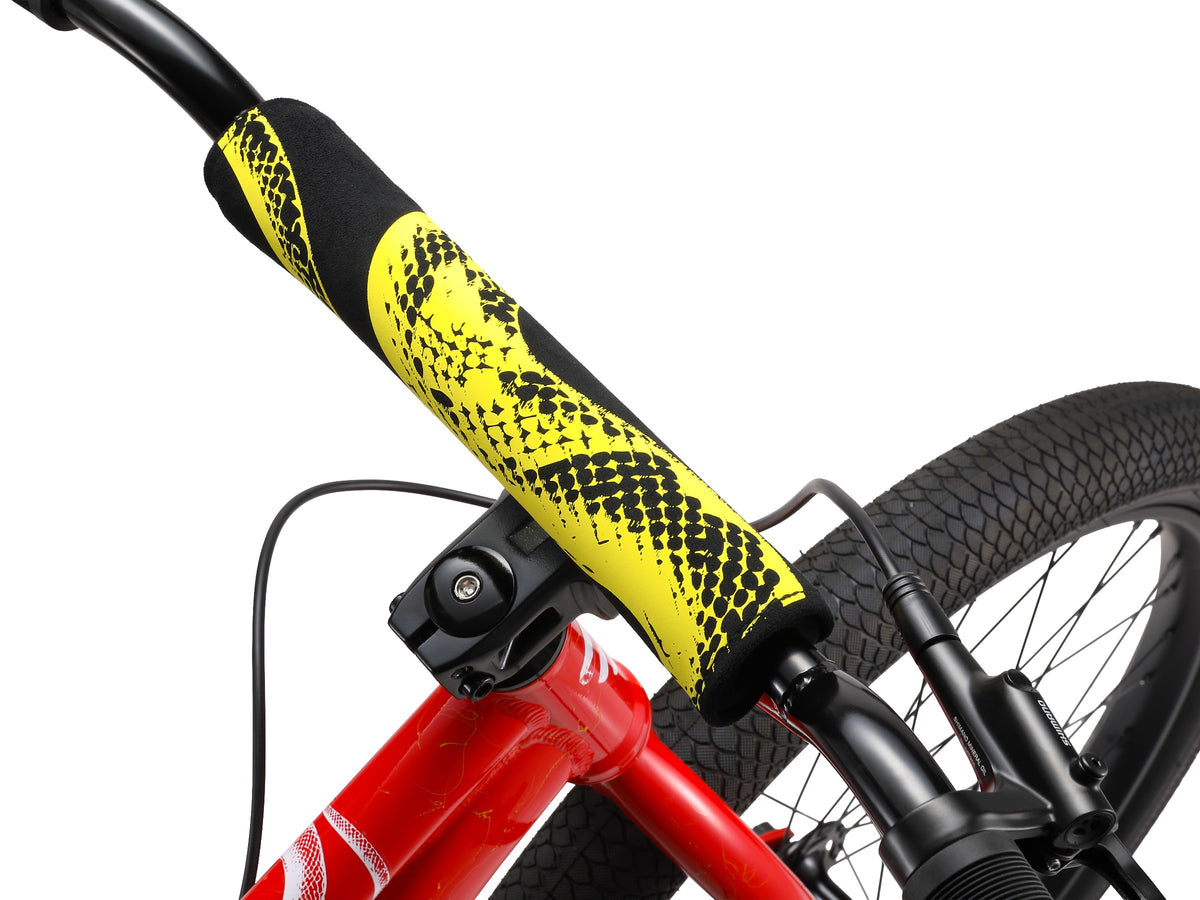

• Bars: Medusa 2 Piece W-711mm H-140mm
• Bottom bracket type: 73mm ISO Thread
• Front brake: Side pull cable brake (supplied in roadkit)

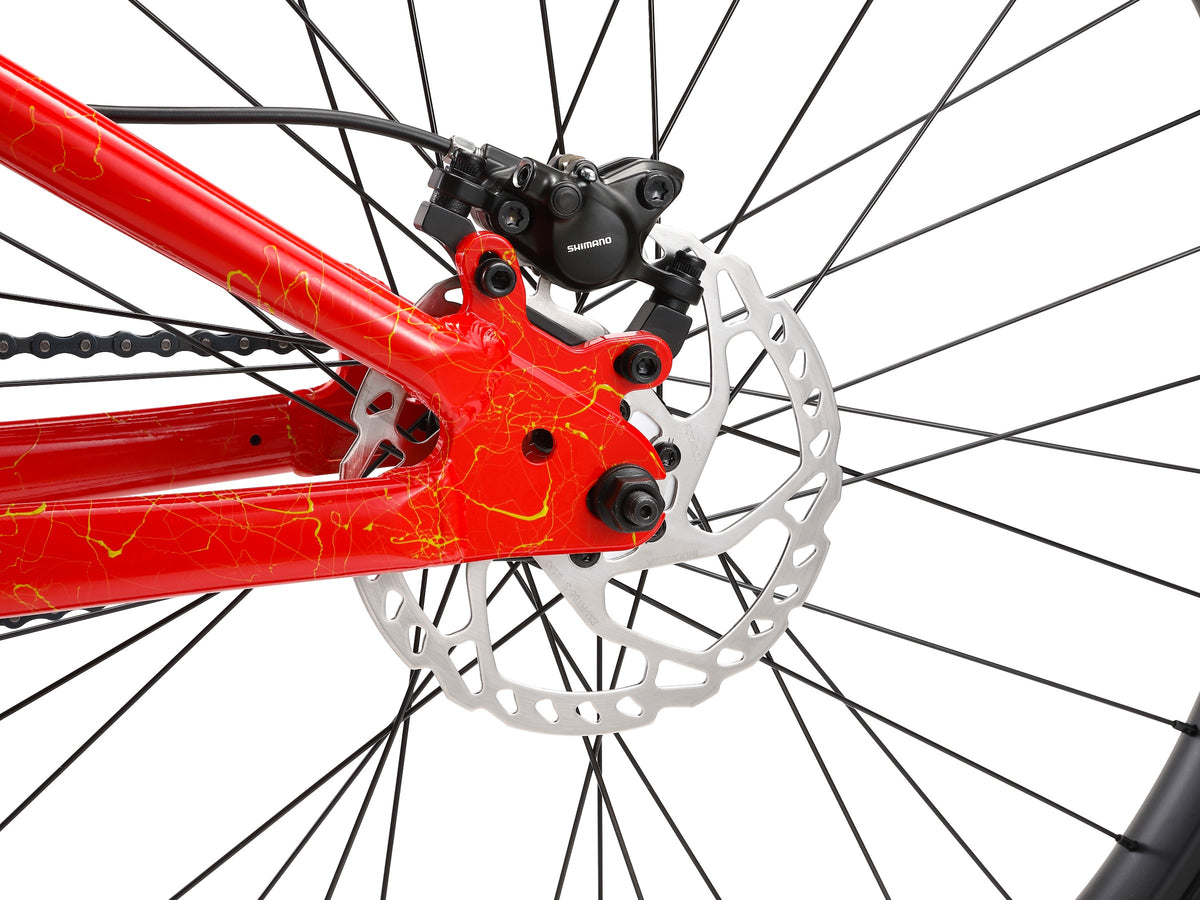

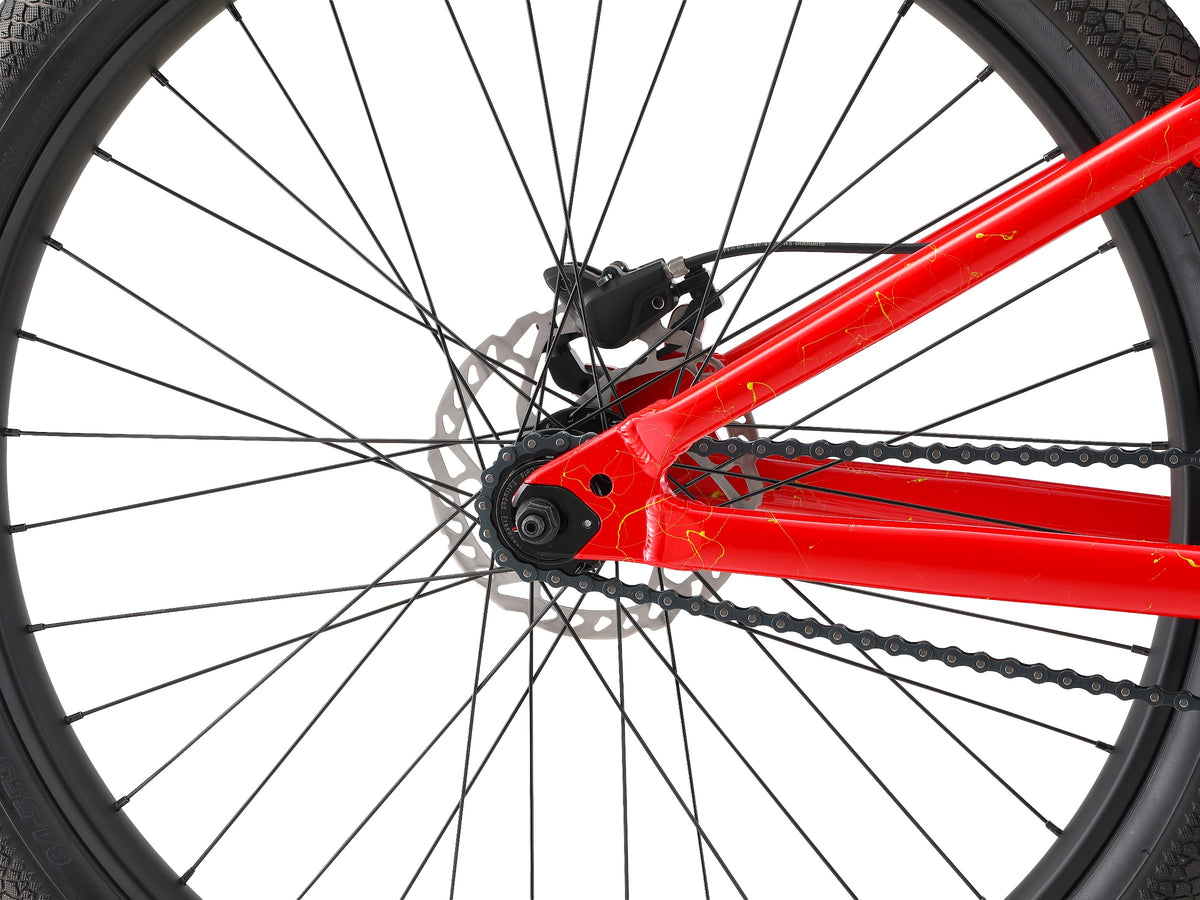

• Rear brake: Shimano MT200 - hydraulic disc brake 160mm rotor
• Standover height: 702mm

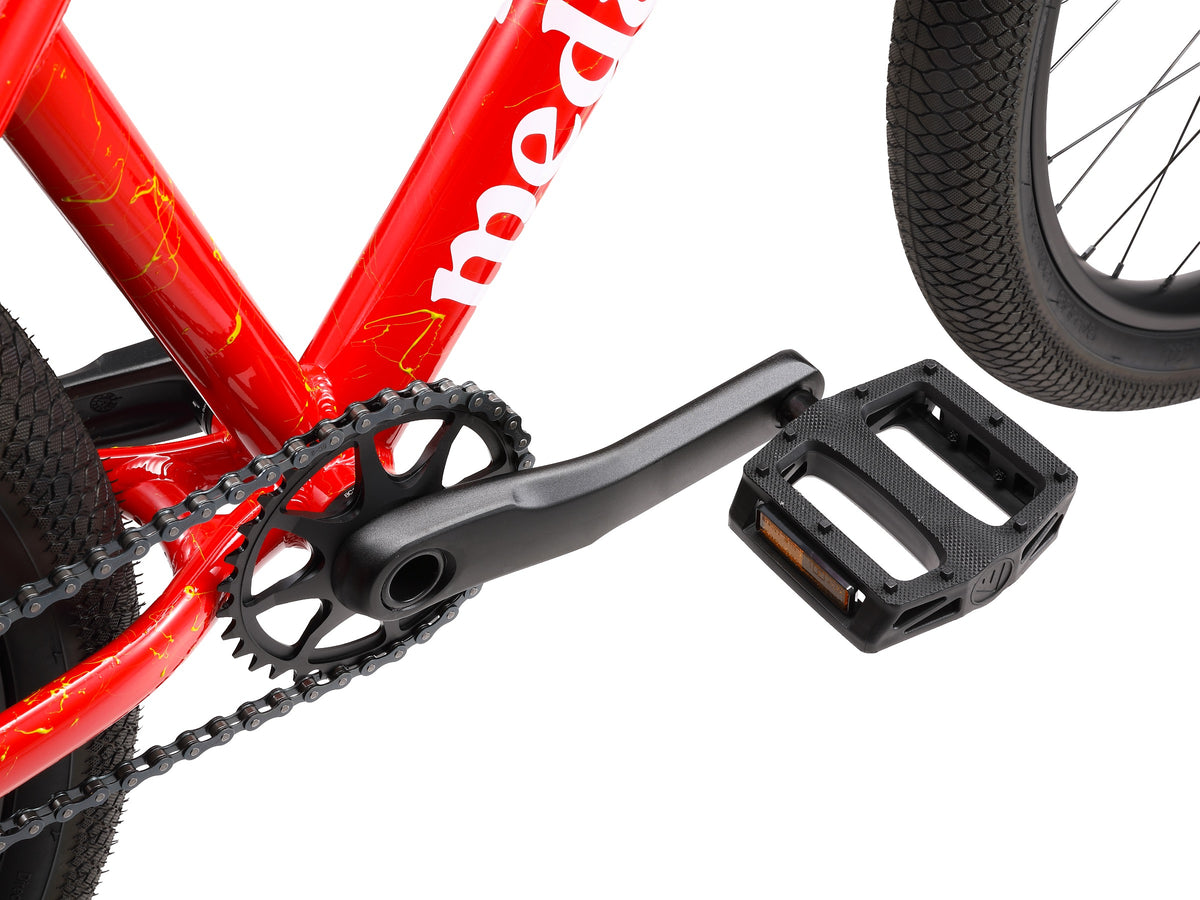

• Chainring sprocket front: 32t Direct Mount CNC alloy single speed
• Cranks: Samox 165mm forged direct mount alloy crank. 24mm hollow spindle
• Reach: 430mm
• Stack height: 513mm
• Bottom bracket height: 30mm

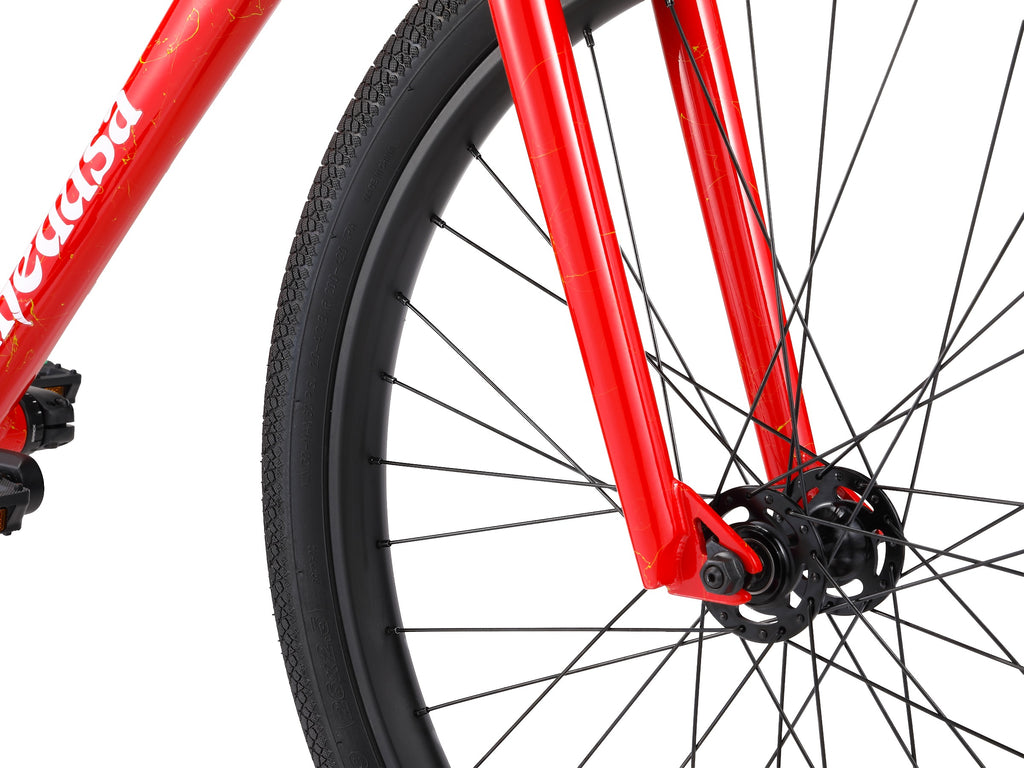

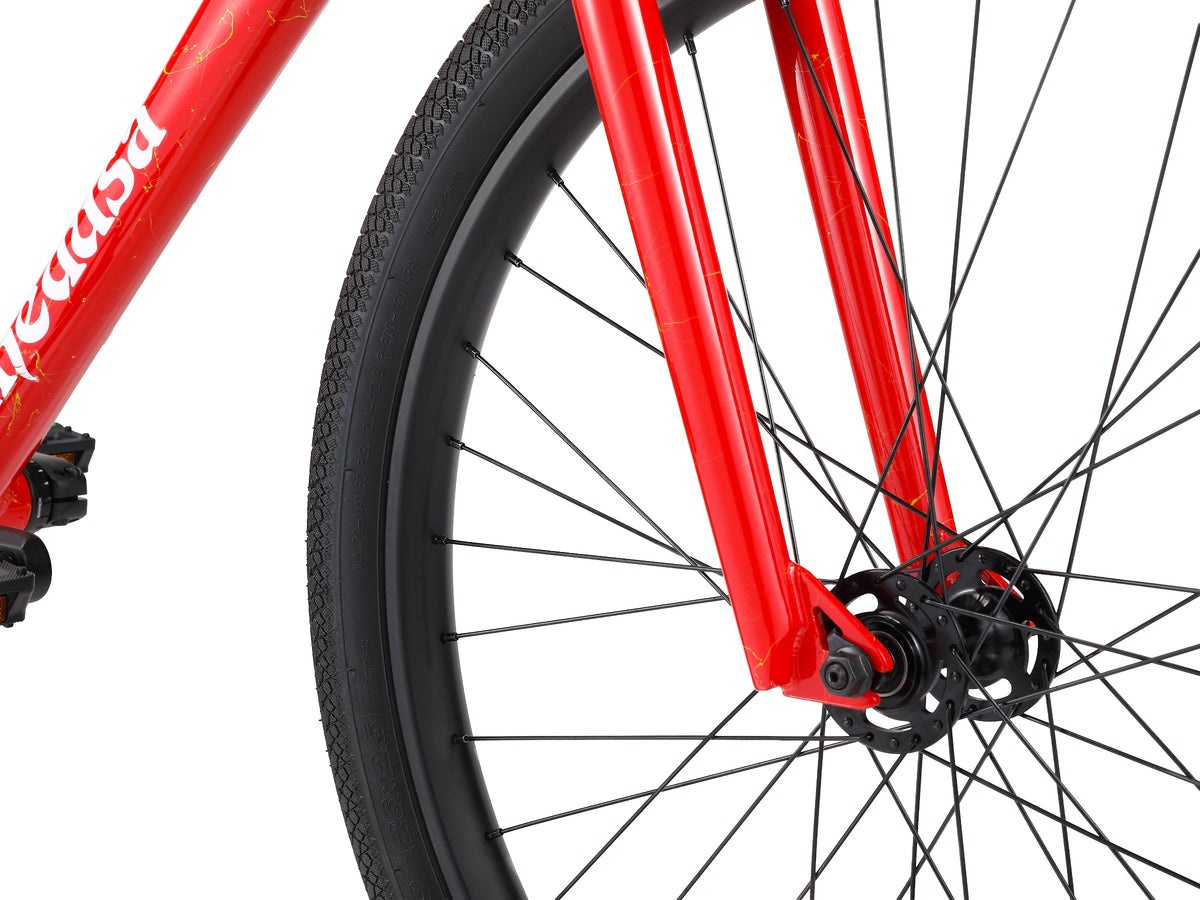

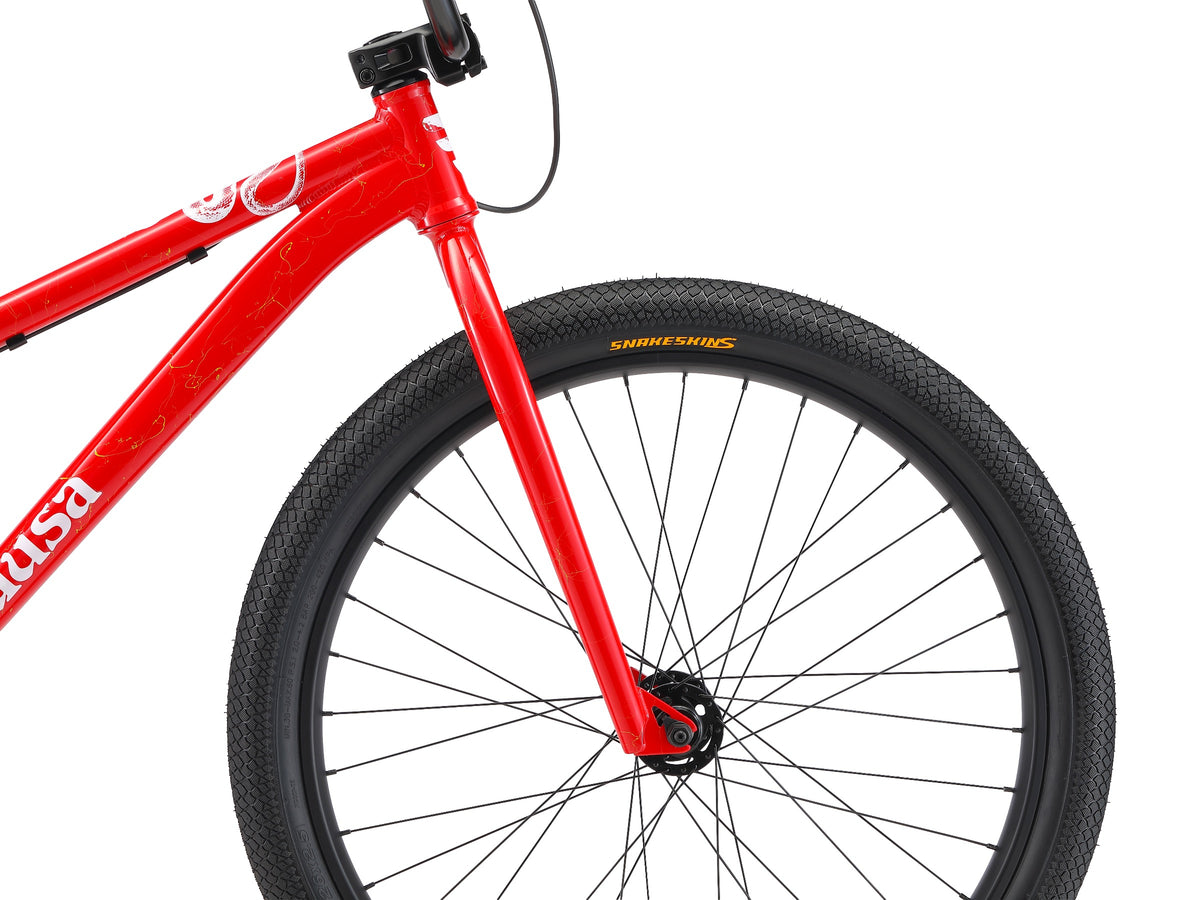

• Forks: Medusa V2 Flanged Fork
• Frame: Medusa V2 6061 T6
• Frame construction and details: 6061 T6 Aluminum, IS rear brake tab, heavy duty hydroformed downtube and chainstays, peg mount integrated dropouts, interchangable geared to single speed dropout inserts
• Front axle hub spacing: 3/8" x 100mm axle
• Front hub: Alloy shell, Fully sealed bearings, 3/8" axle
• Grips: Mafia 2026 Mushroom grip
• Headset: 1 1/8” Integrated - Sealed bearings
• Headset type: 1 1/8” integrated
• Max tyre width front: 66mm / 2.6"
• Max tyre width rear: 66mm / 2.6"
• Pedals: 9/16” Mafiabikes plastic
• Rear axle hub spacing: 3/8" x 135mm axle, disc mount
• Rear hub: Alloy shell, 3/8" axle, Threaded Freewheel, Fully sealed bearings, Disc
• Front rim: 26" 30mm Mafia 2026 Wide low profile double wall alloy 36h
• Rear rim: 26" 30mm Mafia 2026 Wide low profile double wall alloy 36h

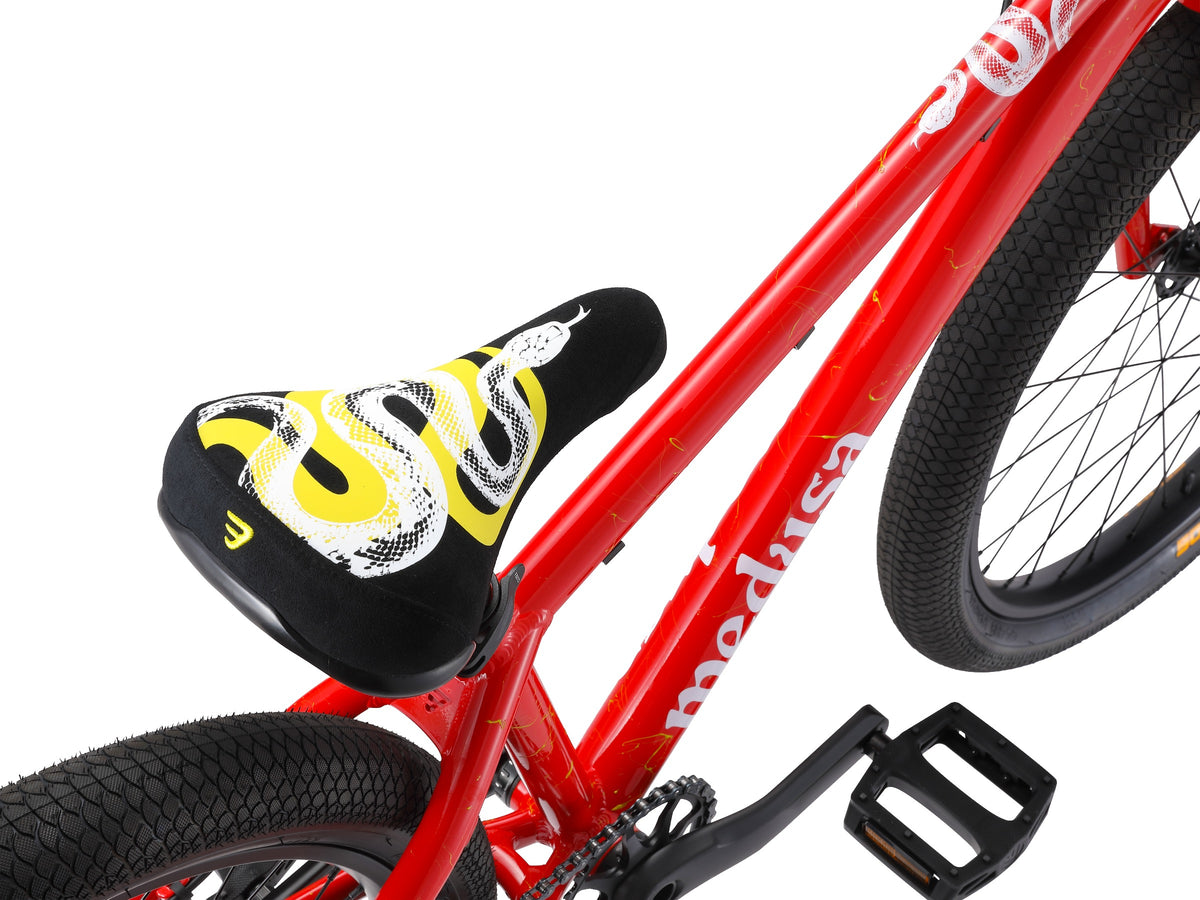

• Seat: Mafiabikes Wheelie seat - Railed
• Seat clamp: Ø35mm External QR
• Seatpost: Ø31.6mm micro adjust alloy
• Seatpost seatclamp: Ø31.6mm post, 35mm seatclamp
• Sprocket cassette rear: 15t Freewheel M30 x 1mm
• Stem: Mafiabikes 2026 forged topload - 50mm reach
